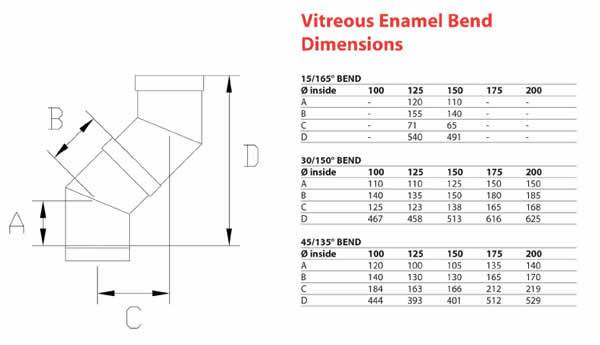

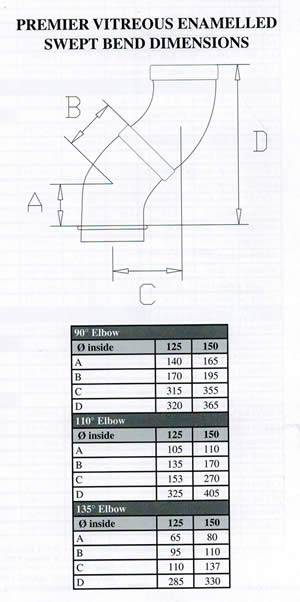

S-J's Offset dimensions guide

VITREOUS ENAMEL FLUE PIPE

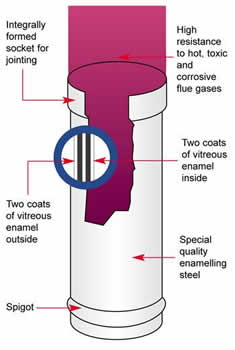

Vitreous enamel flue pipe (fig.1) is designed for internal use up to 1.8 metres from the heating appliance to connect up with the chimney, liner or twin wall chimney system and provides a neat, attractive and highly durable flue system. As a result of high quality manufacturing techniques, vitreous enamel flue is suitable for use on gas, oil, solid fuel and wood burning appliances with flue gas temperatures up to 750°C.

PRODUCT DESCRIPTION

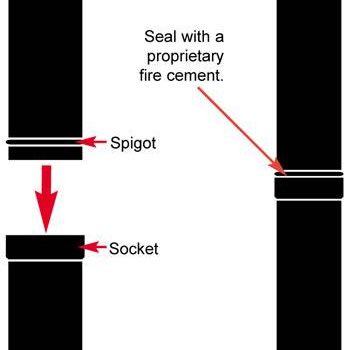

Jointing is by spigot and socket, the socket being formed integrally with the section. (This is the most practical and tested method to cater for all flue conditions) Install with the socket uppermost (fig.2) and seal with a proprietary fire cement

Manufactured under ISO 9000 quality assurance scheme satisfying Building Regulations approved document J

Manufactured and approved to BS 6999:1989

Vitreous enamelling to Class SA when tested and assessed to BS. 1344: Part 3.1988, ISO 8290 1987
